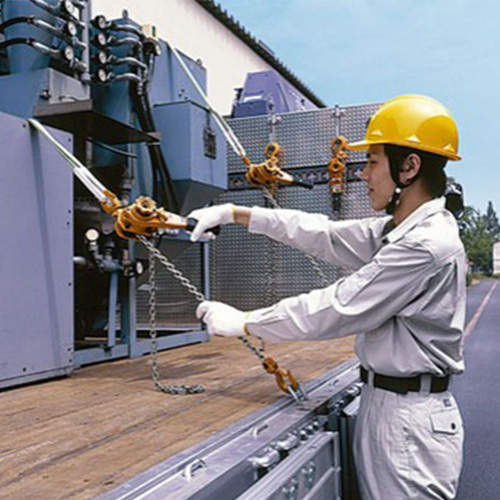

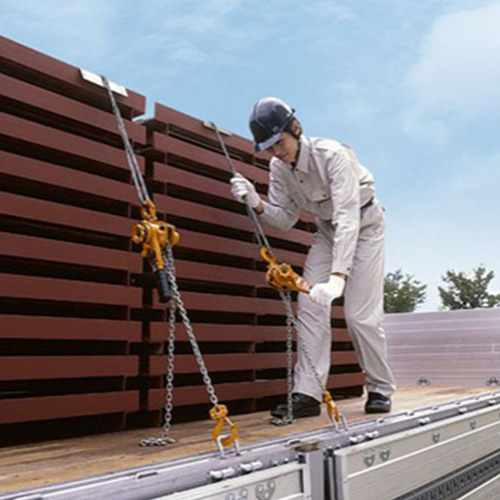

The manual chain lever hoist VA series hoist is a lightweight, small and multifunctional manual piece of lifting equipment, which is usually used for installing equipment, lifting materials, pulling goods, bundling parts and drawing lines in power, mining, shipbuilding, construction, transportation, post and telecommunications applications. This product performs especially well in pulling objects from various angles in narrow workplaces, field operations at high altitude.
Characteristic
The whole hoist is compact in structure, light in weight and easy to carry, which is especially suitable for remote and high-altitude operations.
The structure of the whole hoist is made of high strength steel plate. The surface is treated with a spraying treatment, so that the coating is firm enough to be impact-resistant and wear-resistant.
The brake adopts a double pawl brake to ensure safety and reliability.
The guide chain adopts the closed structure to ensure the reliability of the chain when working.
The pulley hook is forged by alloy steel and processed by heat treatment to ensure that the hook will not break down when overloaded, so that to ensure its safety when using.
This product is equipped with brake and clutch device. The chain can be freely pulled when there is no load, so as to improve its efficiency.
Parameter
Model | Capacity (T) | Standard lifting height (M) | Running test load (T) | No.offalls of load chain | Load chain diameter (MM) | Net weight (KG) |
VA 0.75T | 0.75 | 1.5 | 1.125 | 1 | 6 | 7 |
VA 1T | 1 | 1.5 | 1.5 | 1 | 6 | 7.5 |
VA 1.5T | 1.5 | 1.5 | 2.25 | 1 | 8 | 11 |
VA 2T | 2 | 1.5 | 3 | 1 | 8 | 12 |
VA 3T | 3 | 1.5 | 4.5 | 1 | 10 | 19 |
VA 6T | 6 | 1.5 | 9.5 | 2 | 10 | 32 |
VA 9T | 9 | 1.5 | 13.5 | 3 | 10 | 47 |
The manual chain lever hoist VA series hoist is a lightweight, small and multifunctional manual piece of lifting equipment, which is usually used for installing equipment, lifting materials, pulling goods, bundling parts and drawing lines in power, mining, shipbuilding, construction, transportation, post and telecommunications applications. This product performs especially well in pulling objects from various angles in narrow workplaces, field operations at high altitude.
Characteristic
The whole hoist is compact in structure, light in weight and easy to carry, which is especially suitable for remote and high-altitude operations.
The structure of the whole hoist is made of high strength steel plate. The surface is treated with a spraying treatment, so that the coating is firm enough to be impact-resistant and wear-resistant.
The brake adopts a double pawl brake to ensure safety and reliability.
The guide chain adopts the closed structure to ensure the reliability of the chain when working.
The pulley hook is forged by alloy steel and processed by heat treatment to ensure that the hook will not break down when overloaded, so that to ensure its safety when using.
This product is equipped with brake and clutch device. The chain can be freely pulled when there is no load, so as to improve its efficiency.
Parameter
Model | Capacity (T) | Standard lifting height (M) | Running test load (T) | No.offalls of load chain | Load chain diameter (MM) | Net weight (KG) |
VA 0.75T | 0.75 | 1.5 | 1.125 | 1 | 6 | 7 |
VA 1T | 1 | 1.5 | 1.5 | 1 | 6 | 7.5 |
VA 1.5T | 1.5 | 1.5 | 2.25 | 1 | 8 | 11 |
VA 2T | 2 | 1.5 | 3 | 1 | 8 | 12 |
VA 3T | 3 | 1.5 | 4.5 | 1 | 10 | 19 |
VA 6T | 6 | 1.5 | 9.5 | 2 | 10 | 32 |
VA 9T | 9 | 1.5 | 13.5 | 3 | 10 | 47 |
