Availability: | |
---|---|

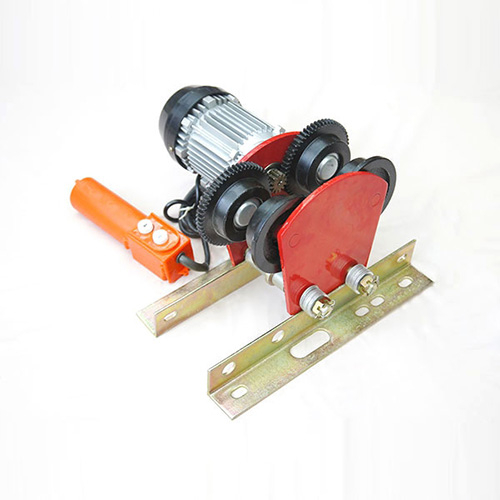

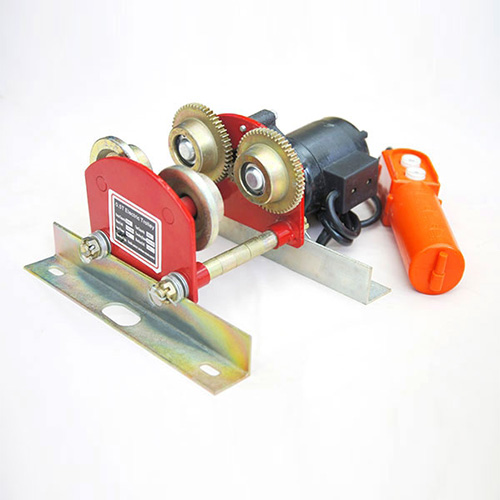

The electric trolley hoist is designed for very limited height space applications, as its standard traveling height is only 3 meters. The unique design will balance the product on an I-beam and adjust itself according to the width of the I-beam rail. This product is suitable for I-beams with a width of 80-100 mm.
Parameter
Specification | KD0.5 | KD1 | ||
Rated Load (T) | 0.5 | 1.0 | ||
Test Load (T) | 0.6 | 1.2 | ||
Standard Traveling Height (m) | 3 | 3 | ||
Traveling Speed (m/min) | 16.4 | 16.4 | ||
Motor Parameters | Motor Model | D025034 | D026324 | |
Input Power (w) | 60 | 300 | ||
Rotation Speed (rpm) | 1400r/min | 1400r/min | ||
Min Radius of Crooked Track (m) | 1 | 1 | ||
Model of I-Beam | Width of Track | 10-18 | 14-22 | |
68-94mm | 80-110mm | |||
N.W (kg) | 8 | 19 |
Product advantage
Our Electric Trolley Hoist is beautiful in appearance, and it is easy to disassemble and assemble, and can be easily installed by two people.
The hoist trolley is designed with a bearing, balances the electric hoist when lifting objects.
The hoist trolley has small turning radius, which makes turning smooth.
The high-quality steel gears will ensure the smooth running of the hoist trolley.
Wanhua provides customers with a wide selection of lifting equipment. We design and produce electric hoists, chain hoists, air hoists, trolleys, pallet lift trucks, and much more. These products can be customized according to your voltage and weight needs. Contact us to learn more.
Details of Core Components
Electrical-coilThe motor uses high quality copper wire which has good conductivity. The outer surface of the coil is covered with insulating material. | Helical gearHigh precision helical gear can greatly reduce working noise. | HandleThe handle is equipped with an emergency stop switch making it safe to use. |
Stop blockThe device can prevent motor from reversing and collision. | Wire ropeHigh quality wire rope offers good flexibility. Its tensile strength is more than 1770N/mm2. | Magnetic Brake DeviceThe great magnetic brake device has passed 72 hours of continuous full loading test, and the lifted weight did not slip. |
The electric trolley hoist is designed for very limited height space applications, as its standard traveling height is only 3 meters. The unique design will balance the product on an I-beam and adjust itself according to the width of the I-beam rail. This product is suitable for I-beams with a width of 80-100 mm.
Parameter
Specification | KD0.5 | KD1 | ||
Rated Load (T) | 0.5 | 1.0 | ||
Test Load (T) | 0.6 | 1.2 | ||
Standard Traveling Height (m) | 3 | 3 | ||
Traveling Speed (m/min) | 16.4 | 16.4 | ||
Motor Parameters | Motor Model | D025034 | D026324 | |
Input Power (w) | 60 | 300 | ||
Rotation Speed (rpm) | 1400r/min | 1400r/min | ||
Min Radius of Crooked Track (m) | 1 | 1 | ||
Model of I-Beam | Width of Track | 10-18 | 14-22 | |
68-94mm | 80-110mm | |||
N.W (kg) | 8 | 19 |
Product advantage
Our Electric Trolley Hoist is beautiful in appearance, and it is easy to disassemble and assemble, and can be easily installed by two people.
The hoist trolley is designed with a bearing, balances the electric hoist when lifting objects.
The hoist trolley has small turning radius, which makes turning smooth.
The high-quality steel gears will ensure the smooth running of the hoist trolley.
Wanhua provides customers with a wide selection of lifting equipment. We design and produce electric hoists, chain hoists, air hoists, trolleys, pallet lift trucks, and much more. These products can be customized according to your voltage and weight needs. Contact us to learn more.
Details of Core Components
Electrical-coilThe motor uses high quality copper wire which has good conductivity. The outer surface of the coil is covered with insulating material. | Helical gearHigh precision helical gear can greatly reduce working noise. | HandleThe handle is equipped with an emergency stop switch making it safe to use. |
Stop blockThe device can prevent motor from reversing and collision. | Wire ropeHigh quality wire rope offers good flexibility. Its tensile strength is more than 1770N/mm2. | Magnetic Brake DeviceThe great magnetic brake device has passed 72 hours of continuous full loading test, and the lifted weight did not slip. |
